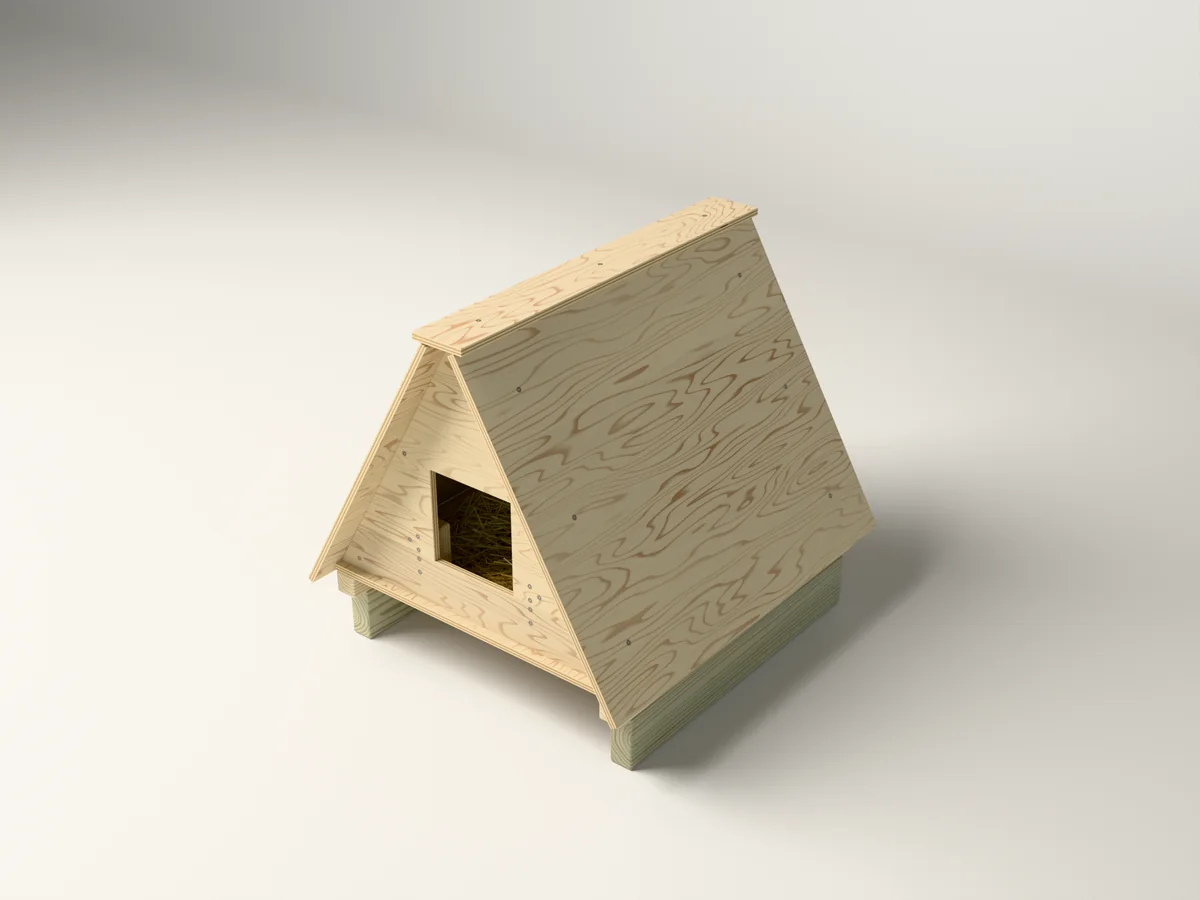

A-Frame Outdoor Cat Shelter
Build a compact peaked sleeping shelter for one cat or a compatible pair.
Get to know the build.
16 steps with drawings. Materials: lumber, plywood and screws.
- Finished size · width × depth × height
- 23-13/16 × 26-15/16 × 23-15/16 in
- Stock used in the design
- 2x2 SPF, 8 ft; 2x4 PT, 8 ft; 1/2 in plywood, 4 × 8 ft; #8 x 1-1/4 in tan star flat-head deck screws; #9 x 2-1/2 in tan star flat-head deck screws; BEHR PREMIUM PLUS 1 qt satin enamel exterior paint and primer; and more in the shopping list
- Tools to check
- Tape measure, Speed square, Pencil, Level, Circular saw, Straightedge cutting guide, Jigsaw, Drill/driver, Countersink bit, Wood bits for clearance holes (free screw passage), pilot holes (smaller guides in receiving wood) and jigsaw starter holes; adjustable depth stop, T20 and T25 star driver bits, Bar clamps (at least 2, 24 in or longer), Sandpaper, Small paintbrush, Safety glasses, Hearing protection, Work gloves, Dust mask, Sawhorses (a pair), Flat scrap bridges, clamp pads and packing blocks saved from offcuts, Calipers, Stable workbench or sacrificial support boards, Scrap prop: plywood offcut about 16 in long and 6 in wide, plus a packing block, Hand screwdriver matching the deck screws, Sanding block, dust brush and clean wiping cloths, Watering can and Two stable supports about 8 in high with flat tops at least 12 x 24 in (two stacks of scrap lumber screwed together, or two low sturdy boxes).
Start with the plan.
Digital download. Materials, tools and the finished item are not included.
- Preparation packet PDF (shopping list, cut list, tools), 15 pages
- Build guide PDF, 50 pages
- Preparation packet PDF, metric (mm) (shopping list, cut list, tools), 15 pages
- Build guide PDF, metric (mm), 50 pages
- Offline animated 3D build guide (ZIP; open guide.html in a web browser; guide-metric.html for mm)
